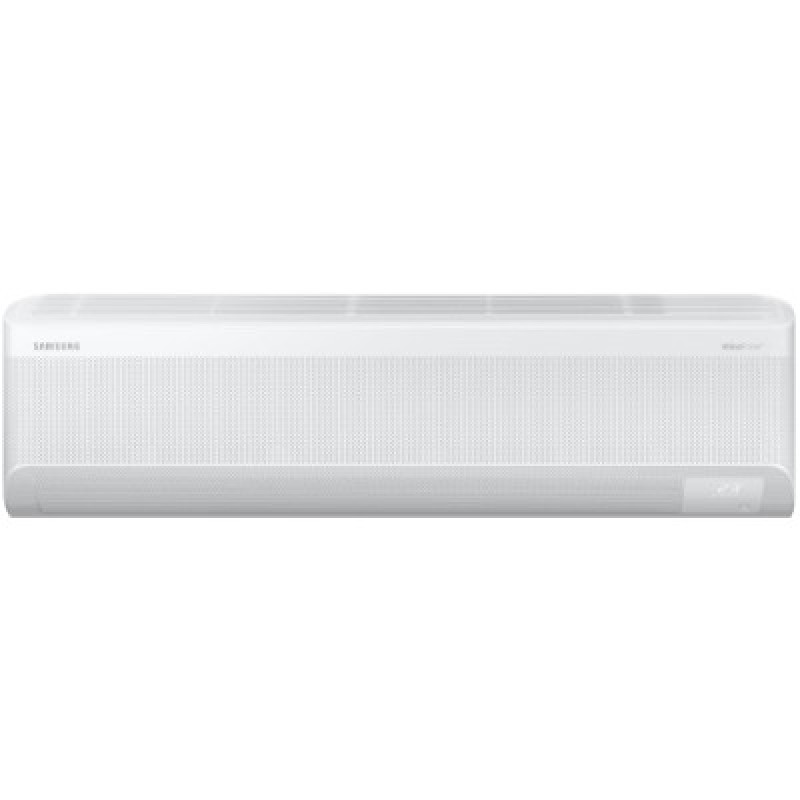

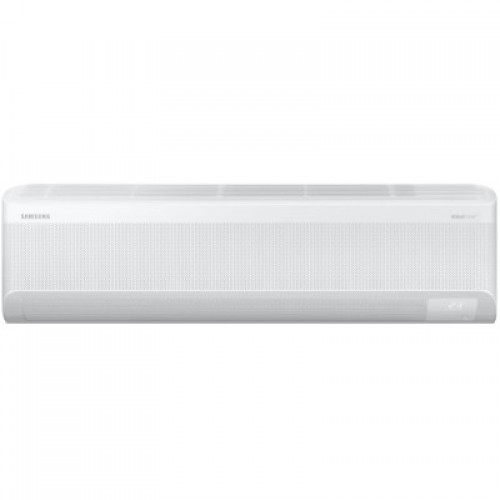

The SAMSUNG AR60F09D1BWNSH BESPOKE 1HP R32 AI Inverter Split Air Conditioner is a high-performance cooling solution combining advanced technology with superior energy efficiency. This model features an 8,530 Btu/h (2.9 kW) cooling capacity, utilizing eco-friendly R32 refrigerant and sophisticated AI Inverter technology for powerful, stable, and precise temperature control. With a low power consumption of just 610W, it ensures significant energy savings. Engineered for quiet operation, this air conditioner provides a comfortable and peaceful environment, ideal for any home setting.
Product Features
- R32 Eco-Friendly Refrigerant: Utilizes the next-generation R32 refrigerant, which has a lower environmental impact and contributes to enhanced cooling performance.
- AI Inverter Technology: Intelligently senses changes in the indoor environment and automatically adjusts compressor speed, providing precise temperature control for rapid cooling and optimal energy efficiency.
- Powerful 1HP Cooling: Delivers 8,530 Btu/h (2.9 kW) of cooling capacity, quickly lowering room temperature for immediate comfort.
- Quiet Operation Design: The indoor unit operates with a low noise level of just 19dB(A) (low speed mode), ensuring a serene and comfortable environment, perfect for bedrooms and studies.
- Sleek & Modern Design: Designed with contemporary home aesthetics in mind, featuring clean lines that complement various interior decor styles.
Technical Specifications
Cooling Performance
- Cooling Capacity (Btu/h): 8,530 (3,753 - 11,942)
- Cooling Capacity (kW): 2.9 (1.1 - 3.5)
Electrical Data
- Current (A): 2.9
- Power Consumption (W): 610
- Power Supply: Single Phase, 220~240V, 50Hz
Dimensions (W × H × D) (mm)
- Indoor Unit: 820 x 299 x 215
- Outdoor Unit: 710 x 540 x 220
Weight (kg)
- Indoor Unit: 8.9
- Outdoor Unit: 23.0
Noise Level (dB(A))
- Indoor Unit (High/Low): 37 / 19
- Outdoor Unit (High): 45
Piping Specifications
- Max. Pipe Length (m): 15
- Max. Pipe Height (m): 8
Refrigerant
- Type: R32
- Charge Amount (kg): 0.55
Pipe Diameter
- Liquid (Ø, mm): 6.35
- Gas (Ø, mm): 9.52
Type
- Cooling Mode: Inverter Cooling
- Origin: Thailand
Warranty Service
This product comes with a one-year comprehensive warranty service, and the compressor part enjoys an extended three-year warranty.
The product information above is for reference only; everything is subject to the brand's official website.
SAMSUNG AR60F09D1BWNSH BESPOKE 1HP R32 AI Inverter Split Air Conditioner Review
| Split-type AC Standard Installation fee | |||
| Site inspection | $200 | ||
| HP | Installation fee | ||
| 3/4HP | $1650 | ||
| 1HP | $1650 | ||
| 1.5HP | $1750 | ||
| 2HP | $1950 | ||
| 2.5HP | $2600 | ||
| 3HP | $3000 | ||
| Inspection fee $100, if the installation is confirmed after inspection,will be refunded for installation fee. Please note that we can not fix the date & time for inspection, master will contact the customer directly to confirm the date. | |||
| Standard installation include: 12ft Refrigerant pipe Water pipe and electric wire 4pcs Shock absorber rubber |
Standard installation does not include the following items: Electricity supply or extension of electric wire Extra wall opening and dismantling window frame Cutting or removal for an extra-large or extra-thick glass Decoration /Finishing work such as wall-painting Delivery location which is no elevator service provide |
||
| Inverter or cool warm type AC need with extra control wire; it will be quoted in separate. | |||
| HP | Installation fee | ||
| 3/4HP ** | $380 | ||
| Split-type AC Extra Fee list | |||
| Installation of indoor unit rack (aluminum) | Per set $300 | ||
| Installation of window split type air-conditioner unit rack with concrete base more than 28" (W) X 20"(D) | Per set $300 | ||
| Installation of window split type air-conditioner unit rack without concrete base or with base less than 28"(W) X 20"(D) | Per set $500 | ||
| Outdoor air-conditioner frame (aluminum or China 202 stainless steel) | Per set (3/4-2.5HP) $500 | ||
| Same as above | Per set (3HP) $650 | ||
| Same as above | 3HP or above Quotation | ||
| Extra surface refrigerant pipe with white insulator and control wire | 3/4-1.0 HP Per feet $70 | ||
| Same as above | 1.5HP or above Per feet $80 | ||
| Control wire with PVC conduit | Included 12 feet $200 | ||
| Control wire with PVC conduit(after the12 feets) | Per feet $20 | ||
| Additional Drain Pipe | Per feet $10 | ||
| Concrete Wall opening (non structure brick wall only)*Not included leakproof & repair hole | Per Hole (less 4" thick) $200 | ||
| Curtain Wall opening (non structure brick wall only)*Not included leakproof & repair hole | Per Hole (less 6" thick) $200 | ||
| Remove waterproofed material of wall hole for refrigerator pipe which is located outside the building (9" depth or above) | Per Hole $200 | ||
| Extra refrigerant for the extra pipe(7 meters above) | Per set $500 | ||
| Installation of stainless steel water tray for outdoor unit (Highly Recommended for heat pump model) | Per set $550 | ||
| To install quiet clear protective strip | Per set $150 | ||
| Removal and Reinstallation of the window for the outdoor unit installation | Per window $150 | ||
| Normal glass covering ( 6mm thick)(Use normal glass frit: other glass frit may have additional charge ) | Per feet $80 | ||
| Frosted or tea glass seal (6mm thick) (if other glass glue is required, another quotation will be charged) per square foot | Per square foot $90 | ||
| Aluminum window flying edge | Per side $150 | ||
| Replacement of socket (each) | $120 | ||
| Replacement of plug (each) | $60 | ||
| Outdoor unit power supply (per foot) | $20 | ||
| Dismantling of old window machine and aluminum frame (iron window / iron frame is calculated separately) | $100 | ||
| Dismantling of old split machine and removal (under safe conditions) | $300 | ||
| Outdoor high-altitude work (from the ground upwards of two meters or more, or half-body stretched out of the wall and practical according to the site environment) | $300 | ||
| Radiator installation height above ground exceeds 2 meters | $300 | ||
| Opening mouth (wood board or plasterboard), excluding mouth door and restoration | $250 | ||
| Dismantling and installation of external wall insulation cover (shrimp shell) (under safe conditions) | Each(first 3 meters) $250, thereafter each meter $50 | ||
| Emergency stop system | $200 | ||
| Waterproof knife system | $200 | ||
| Digging and hiding the throat without including the mud and water closure (per foot) | $200 | ||
| Pulling the wire system one by one, pulled out from the main power box (including 15 feet of wire and insurance system) | $800 | ||
| Pulling the wire system one by one, including 10 feet of wire | $550 | ||
| Electric wire per foot | $20 | ||
| Outdoor power supply with PVC soft lamp throat and accessories (within 6 feet) | $150 | ||
| Snow seed throat shell (per foot) | $150 | ||
| The installation process of split unit is carried out in multiple steps | $150 | ||
| Arranging scaffolding for customers (reference price) (the third-party insurance amount is 20 million, if the estate requires a larger insurance amount, additional charges will be made) | Standard scaffolding (within 8 feet X 8 feet) $3800 | ||
| Additional dimensions / special scaffolding shapes / insurance plus name or address (short-term) | Quote | ||
| Safety workbench | Quote | ||
| Special installation | Quote | ||
| Moving old split unit up or down stairs (per set per floor) | $30 | ||
| Discovery Bay, outlying islands, restricted areas, and remote areas charges every single | $300 | ||
| Village entrance fee (if the car cannot reach and requires walking to the installation location and depending on the length of the road conditions) | Each single (reference price) $120 | ||
| Remarks |
|
a. 12 months warrant is provided for installation works. The warranty includes:(I)Air-conditioner frame (II)Connection failure of refrigerants pipes Maintenance service does not include the followings: Scaffolding must be provided by clients Problems caused by poor maintenance such as leaking of drain pipe due to improper and irregular maintenance Clients will responsible for the decoration /finishing work for inspection or maintenance if the air-conditioner pipe is covered or decorated. In event of discrepancy or inconsistency between the Chinese and the English version |
