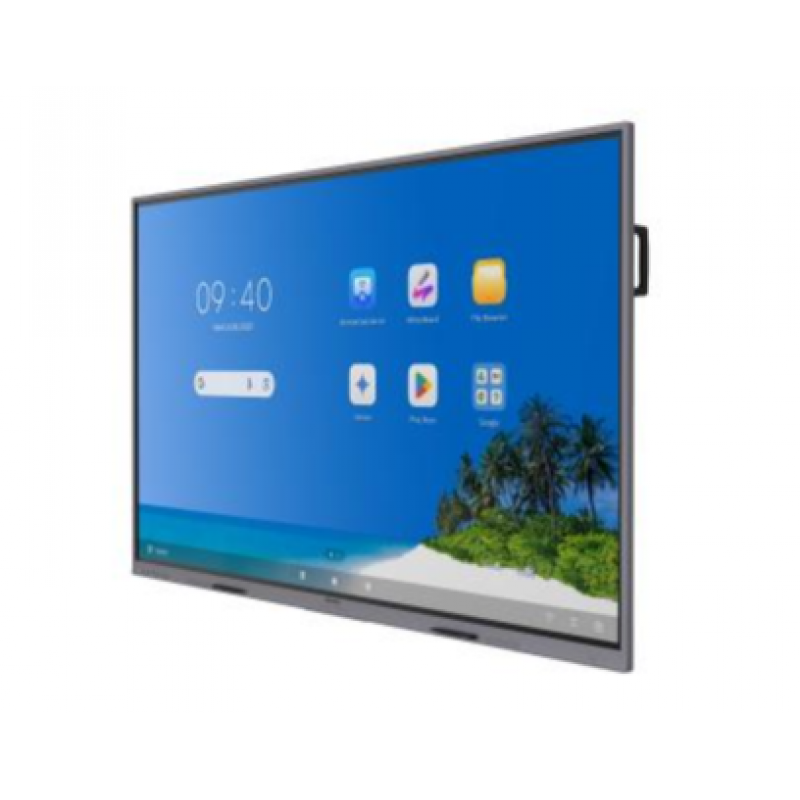

HIKVISION DS-D5B86RB/EP 86" 4K Interactive Digital Board
Citi Exclusive | $150 Instant Off
Interest-Free Installments
The HIKVISION DS-D5B86RB/EP is an 86-inch 4K UHD Interactive Display featuring a 3840 × 2160 ultra-high-definition resolution and 50-point multi-touch capability. With EDLA certification and a built-in Android 14 system, this anti-glare display combines powerful hardware with seamless interaction, making it the ideal solution for modern classrooms and professional meetings.
Key Features
- 50-Point Multi-Touch: Delivers a quick response and smooth writing experience, supporting multi-user collaboration.
- EDLA Certified System: Built-in Android 14 OS with an optional Windows system available via an OPS module.
- Premium Anti-Glare Design: Features 9H tempered glass with anti-glare and anti-blocking design for clear visibility in any lighting.
- All-in-One Safety Design: Includes intelligent temperature control and tempered glass, ensuring environmental friendliness and safety.
- Integrated Network Switch: Built-in network switch chip eliminates the need for an external network switch.
- Durable Performance: Offers a lifespan of 50,000 hours and supports 7 × 16 hours of continuous operation.
Display Specifications
- Screen Size: 86 inch
- Resolution: 3840 × 2160 @ 60 Hz (4K UHD)
- Panel Type: IPS (DLED Backlight)
- Brightness: 450 cd/m² Max (400 cd/m² Typ.)
- Contrast Ratio: 1200:1 (Static) / 15,000:1 (Dynamic)
- Response Time: 5 ms
- Viewing Angle: 178° (H) / 178° (V)
- Display Color: 1.07 G (10 bit)
- Surface Hardness: 9H (Pencil) / 7 (Mohs)
System & Hardware
- Processor: Quad-core Cortex-A72 (2.2 GHz) and Quad-core Cortex-A53 (1.8 GHz)
- Memory: 8 GB
- Built-in Storage: 128 GB
- Audio System: Built-in 2 × 20 W + 25 W loudspeakers
- Wireless Connectivity: Wi-Fi 6 (2.4 G/5 G) and Bluetooth 5.4 support
- NFC: Supported card reader (13.56 MHz)
Connectivity & Interfaces
- Video Input: HDMI 2.1 × 3 (Front × 1, Rear × 2), VGA × 1
- Video Output: HDMI 2.1 × 1
- Data Transmission: USB 3.0 × 3, USB 2.0 × 2, Type-C × 2 (Supports 65W charging and DP 1.4)
- Control Interface: TOUCH-USB 3.0 × 1, TOUCH-USB 2.0 × 2, RS232 × 1
- Network Interface: LAN (1000 Mbps) × 2
- Audio Interface: Audio In × 1, Audio Out × 1, SPDIF × 1
Dimensions & Weight
- Product Dimensions (Without Wall Attachment): 1957.0 × 1156.5 × 77.7 mm
- Product Dimensions (With Wall Attachment): 1957.0 × 1156.5 × 123.0 mm
- Net Weight: 52.7 ± 0.5 kg
- Gross Weight: 72.8 ± 0.5 kg
- VESA Mounting: 800 mm × 600 mm
- Working Temperature: 0°C to 40°C
The product information above is for reference only; everything is subject to the brand's official website.
