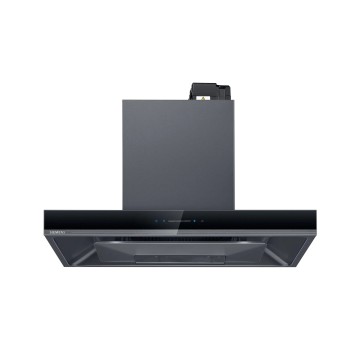

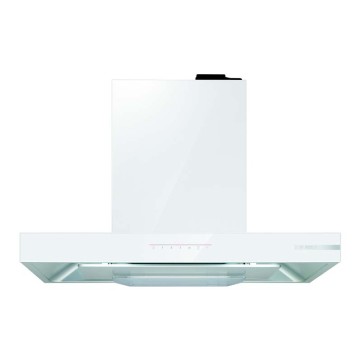

LC532VC9HK DWWDT3NB1W
| 項目/item | LC532VC9HK | DWWDT3NB1W |
| Nominal width | 90 cm | |
| Colour | Delicate Gray | Glacier White |
| Installation type | Wall-mounted | Wall-mounted / built-in |
| Operating mode | Ducted extraction | Exhaust mode |
| Dimensions, H × W × D | 607 × 895 × 505 mm; height including oil cup: 640 mm | |
| Front-panel height | 82 mm; front panel only | Not specified |
| Motor type | Electronically controlled BLDC motor | Not specified |
| Motor adjustment | Adjusts output to detected duct resistance in Boost mode | Not specified |
| Maximum airflow | Not specified | 1500 m³/h |
| Speed settings | 3 normal speeds + intensive setting; 4 settings total | 3 speed levels, including an extra-strong suction setting |
| Controls | Touch controls | |
| Extraction design | 5D extraction with surrounding and lower openings, plus a central opening in the guide panel | 5D surround suction |
| Grease separation / removal | 90.2% under GB/T 17713-2022 testing; CVC report WTSJX2024-0574, April 2024 | Over 90%; test details not specified |
| Cooking odour removal | Not specified | More than 95%; test details not specified |
| Rated appliance power | 284 W | Technical specifications: rated power 0.284 kW (13A) |
| Motor power | Rated motor input: 280 W | Overview describes a 0.284 kW (13A) motor; technical specifications label the same value as rated power |
| Lighting | emotionLight LED lighting; 2 W × 2 | LED lighting; 2 W × 2 |
| Cleaning system | smartClean electric heat cleaning to melt internal grease | One-touch automatic self-cleaning oil removal |
| Cleaning cycle duration | 30 minutes | Not specified |
| Cleaning reminder | After 20 operating hours | Not specified |
| Bacteria reduction / removal | 99.9% reduction in Escherichia coli during smartClean testing on LC53BVB9HK and LC532VC9HK; CHEARI reports EWCk-24-217 and EWCk-24-277, March 2024 | Up to 99.9% bacteria removal with automatic cleaning; organism and test details not specified |
| Easy-clean surfaces and access | E2C easy-to-clean coating and removable guide panel | Not specified |
| Post-cooking shutdown | Press the power key to run at speed 2 for another 3 minutes before switching off; press again to stop immediately | Not specified |
| Lighting control | Separate lighting control | Not specified |
| Electrical supply and plug | 220 V / 50 Hz; GB plug | Not specified |
| Cable length | 130 cm | Not specified |
| Exhaust pipe diameter | Not specified | 120 mm or 150 mm |
| Minimum clearance above gas hob | 650 mm above pan supports; use any greater clearance required by the hob manufacturer | Not specified |
| Minimum clearance above electric hob | 550 mm above the hob surface; use any greater clearance required by the hob manufacturer | Not specified |
| Cabinet integration requirements | At least 320 mm clear cabinet depth excluding the door; removable upper cabinet base and connection/service access as shown in the installation drawing | Designed for slim built-in installation; minimum cabinet depth and service-access requirements not specified |
| Cleaning precautions | smartClean does not replace routine care. Empty the oil cup before the cleaning cycle and clean the cup and filter afterwards. Empty the cup at two-thirds full during routine use. Let the appliance cool and unplug it before manual cleaning. | Not specified |
| Included accessories | Not specified | Adjustable-height decorative cover and adjustable-height mounting brackets |
| Country of origin | China | |
| Warranty period | 2 years | |
| Motor warranty | Not specified | 10 years, stated in Attributes as the Motor/Compressor Warranty Period |
| Suction quality guarantee | Not specified | 10-Year Suction Quality Guarantee |
| Simulated-use durability testing | Maximum airflow decreased by 2.5% after a ten-year simulated-use test under JSGF CVC071-2020; CVC report WTS2024-7340, April 2024 | Not specified |
The above information is analyzed and compared by AI, and the content may not be 100% accurate. If you have any questions, please contact our sales staff or the brand for inquiries.
